Energy Recovery

Energy Recovery
  • DETECON's plans to grow the Reverse Osmosis and Energy Recovery lines and enhance the existing lines, offering superior quality of Energy Recovery devices and extremely efficient Reverse Osmosis systems for producing Potable and Technical Fresh Water economically at lowest possible life cycle cost.
  • The Energy Recovery device, DETECON offers, includes a highly efficient Isobaric Energy Converter (IEC), which actually represents the highest standard of efficiency and which guarantees the reduction of energy consumption by approx. 70%.

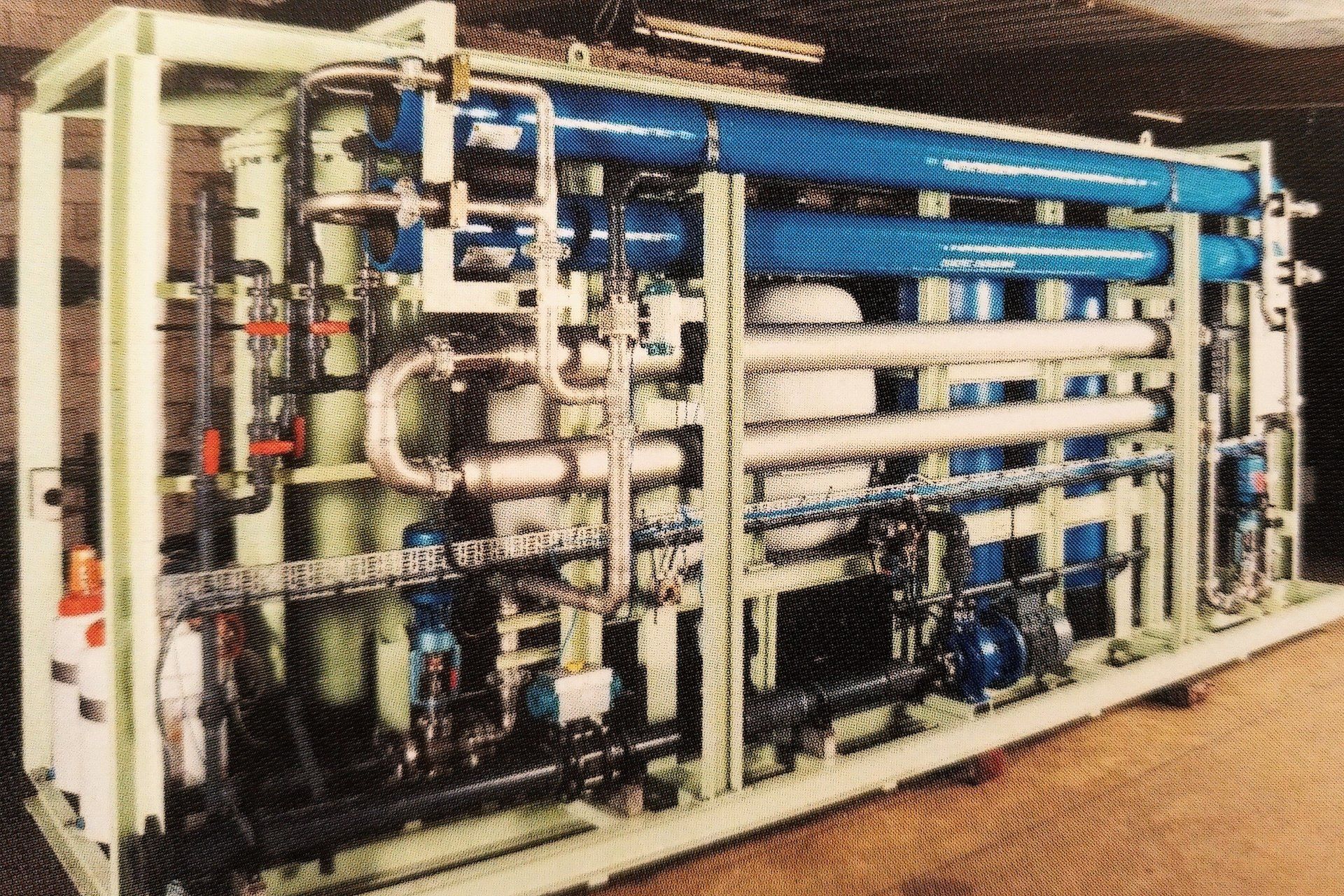

Saving Potential on Reverse Osmosis Plant Operation
  • The incentive here at DETECON is to guarantee an even higher Return on Capital employed by adding savings in Spare Parts and Operating Additives consumption and to obtain an even higher reliability of components and technologies used nowadays.
  • It is so easy to add savings in:
  • consumption of operating additives up to 25%
  • consumption of new membranes up to 20%
  • consumption of general Spare Parts up to 15%
  • We are at your disposal for any further information or clarification that you may require in regard to the above.
  • To find out how to benefit from the full saving potential just contact DETECON by e-mail: office@detecon-desalination.com
Energy Efficiency Design Index (EEDI)
  • In March 2010 IMO's Marine Environment Protection Commitee prepared a draft text on mandatory requirements for an Energy Efficiency Design Index (EEDI)
  • The EEDI is being developed to stimulate innovation in and technical progress of all the elements that influence the energy efficiency of a ship, including fresh water generation.

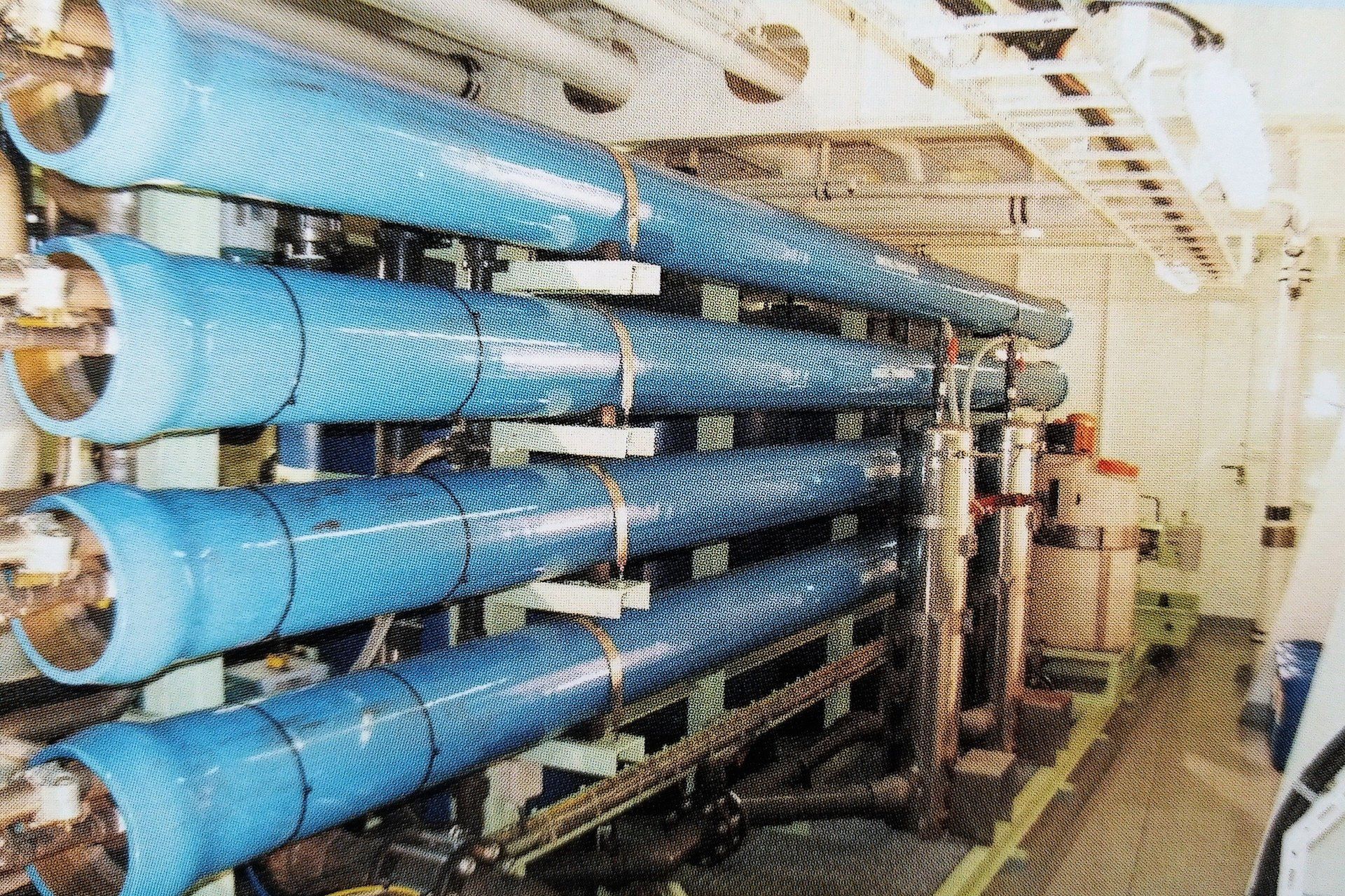

  • Very many sea water Reverse Osmosis (RO) systems have been manufactured, installed and commissioned, based on DETECON's design, such as a 600 cubic metre per 24 hrs sea water RO desalination plant on Pullmantur's HORIZON, EMPRESS, OCEAN DREAM, ZENITH, and onboard of passenger ships sailing under the flag of the AIDA group of companies, NCL, RCCL, and others.
  • All the RO systems included an Energy Recovery Unit (ERU) that reduces the energy consumption from around 10,5 to 3,0 kWh per cubic metre of fresh water produced, simultaniously improving the CO2-balance of the ship
  • We, here at DETECON, believe more cruise ship operators should consider retrofitting RO plants on existing ships, including energy recovery devices. The companay's Senior Vice President Wenzel E. Janda says, "this would reduce fuel oil consumption and CO2 footprint on envirionment, and should be included in vessel SEEMP, Ship Energy Efficiency Management Plan".

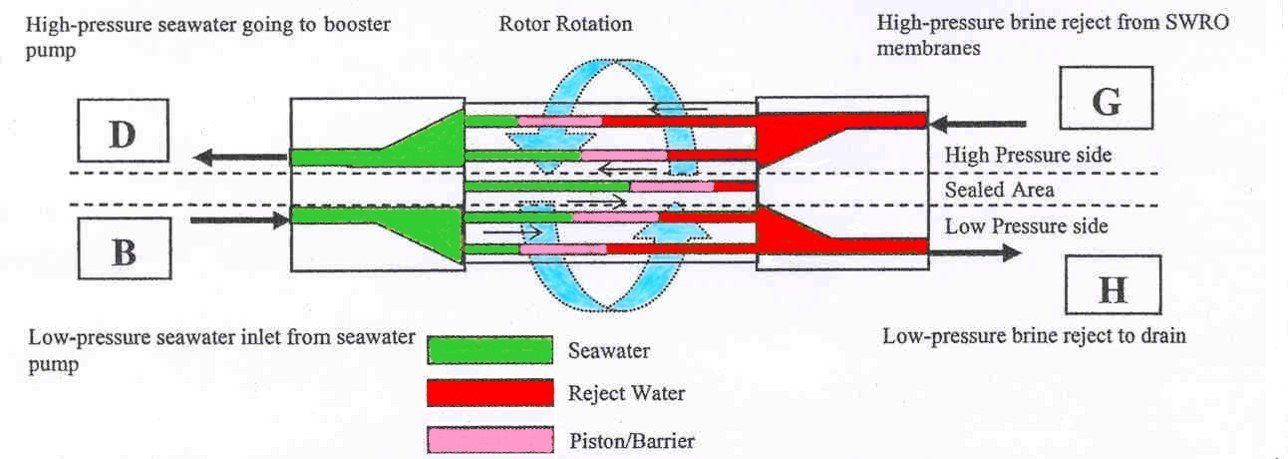

IEC - Isobaric Energy Converter Flow Schematic
  • Energy Recovery devices such as the Isobaric Energy Converter (IEC) are very efficient because they achieve a direct transfer of pressure from the brine reject to the incoming seawater feed.
